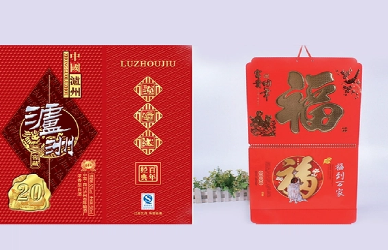

A Hot Foil Stamping Die Cutting Machine is designed to produce sharp, bright, and premium decorative effects on cartons, labels, luxury boxes, and other high-value printed materials. However, even a well-built machine can produce poor results if the stamping process is not properly matched to the foil, substrate, die condition, and operating settings. When foil does not transfer cleanly, the defect usually appears as patchy metallic coverage, broken lines, weak edges, blurred details, or partial adhesion in solid areas. These problems not only reduce the visual quality of the finished product, but also increase waste, slow down production, and make repeatability more difficult. In most cases, the issue is not caused by one single factor. Instead, it is the result of an imbalance between heat, pressure, dwell time, foil characteristics, substrate behavior, and mechanical setup. Understanding how these variables interact is the key to achieving stable and clean foil transfer in real packaging production.
Before solving the problem, operators need to understand what “clean transfer” actually looks like and how unclean transfer shows itself during production. This is important because different defect patterns usually point to different causes.

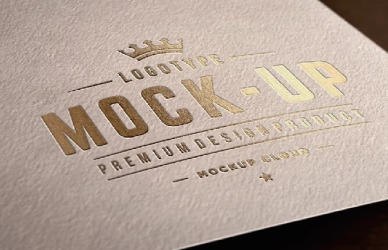

Clean foil transfer means the stamped image is complete, even, sharp, and well bonded to the substrate, with no missing areas, weak metallic density, fuzzy edges, or peeling after impression. By contrast, unclean transfer may appear as patchy fill in large solid designs, incomplete lines in fine text, weak corners in logos, poor edge definition, inconsistent brightness across the sheet, or foil that looks acceptable at first but later lifts or rubs off. When operators can clearly identify the defect pattern, they are much more likely to make the right correction instead of changing several variables blindly.
If the actual symptom is misunderstood, production teams may adjust the wrong setting and make the issue worse. For example, patchy transfer caused by low temperature may be mistaken for poor foil quality, while blurred edges caused by too much heat may be mistaken for poor substrate performance. Accurate diagnosis helps reduce trial and error, saves time during setup, and improves consistency when the Hot Foil Stamping Die Cutting Machine is running at production speed.
Temperature is one of the most important variables in foil stamping because it activates the release and adhesive behavior of the foil system. If the heat is not right, even a good machine and a good foil may fail to produce a clean image.
When the temperature is too low, the foil may not release fully from the carrier, and the adhesive layer may not bond strongly enough to the substrate. This often causes broken lines, weak solids, dull metallic appearance, or missing detail in smaller elements. In many cases, the transfer looks incomplete rather than dirty, and the defect becomes more obvious in fine graphics or dense metallic areas where full activation is essential.
Too much heat creates a different type of problem. Instead of incomplete transfer, the result may become soft, spread out, or visually unstable, with edges that lose crispness and details that appear swollen or slightly blurred. Excessive heat can also make the foil behave too aggressively on sensitive materials, especially on coated stocks, laminated sheets, or delicate decorative substrates. In these cases, the foil transfers, but not cleanly.
Uneven temperature across the platen or die can produce inconsistent transfer in different areas of the same sheet. One side of the image may stamp well while another side appears weak, broken, or patchy. This issue is especially important when running larger sheets or wide-format designs on a Hot Foil Stamping Die Cutting Machine, because heat distribution becomes more critical as the working area increases.
Pressure and dwell time work together with temperature to determine how completely the foil transfers. Even correct heat settings may fail if contact time or impression force is not properly controlled.
If pressure is too low or dwell time is too short, the foil, die, and substrate may not remain in full contact long enough to create complete transfer. This usually results in weak adhesion, broken solids, and missing fine details. The problem is often more noticeable when production speed is increased, because faster running can effectively shorten the bonding window and reduce transfer quality if other settings are not adjusted.
Too much pressure or overly long dwell can also damage image quality. Instead of patchiness, operators may see halos around the design, spread edges, crushed material texture, or a heavy-looking image that lacks sharpness. Small text and fine line work are especially vulnerable to over-transfer because excessive contact can distort detail rather than improve it.
A Hot Foil Stamping Die Cutting Machine cannot produce ideal results if the foil and substrate are fundamentally mismatched. Many transfer problems that appear to be machine-related are actually caused by material compatibility issues.
Foils are engineered with different release coatings, adhesive systems, and application purposes, so not every foil performs the same way on every substrate. A foil that works well on coated paperboard may fail on textured specialty paper, synthetic labels, or laminated stock. If the chosen foil is not designed for the substrate surface, the result may be patchy transfer, weak adhesion, poor metallic brilliance, or unstable rubbing resistance after stamping.
The substrate plays an equally important role. Smooth coated papers and quality paperboards often support more consistent foil transfer, while rough, porous, contaminated, or difficult surfaces can interfere with bonding. Dust, oil, moisture imbalance, uneven coating, or surface tension problems can all reduce transfer quality. In real production, the same machine settings may perform well on one stock and poorly on another, which is why substrate testing is essential before large-scale operation.
Even with correct materials and machine settings, poor mechanical preparation can prevent clean transfer. The die and make-ready system determine whether pressure is distributed correctly and whether image detail is reproduced accurately.
A worn, damaged, or poorly mounted die can reduce sharpness and cause incomplete transfer in fine designs. Small text, thin lines, and detailed logos are especially sensitive to die condition because any loss of precision affects contact quality immediately. If the die surface is not stable or the mounting is imperfect, the stamped result may look uneven even though the foil and substrate are technically suitable.
Make-ready is equally important because it controls how evenly pressure is applied across the job. Uneven packing, poor support beneath the sheet, or incorrect board hardness can create stronger impression in one area and weaker impression in another. For operators using a Hot Foil Stamping Die Cutting Machine in packaging production, good make-ready is often the difference between inconsistent stamping and clean repeatable transfer.
When foil is not transferring cleanly, operators should avoid changing everything at once. A structured troubleshooting process makes it easier to isolate the real cause and return to stable production.
Symptom | Likely Cause | First Action |
Patchy or incomplete transfer | Low temperature, low pressure, short dwell | Increase temperature slightly and test again |
Weak fine text or broken lines | Poor die condition or insufficient contact | Check die precision and adjust pressure |
Soft or blurry edges | Excessive heat or too much dwell | Reduce temperature or shorten dwell |
Uneven transfer across the sheet | Uneven heating or make-ready problem | Inspect heat distribution and packing |
Foil peels or rubs off | Wrong foil for substrate or weak bonding | Test a more suitable foil or adjust dwell |
Good result in one area, poor in another | Uneven pressure or surface inconsistency | Check platen balance and substrate quality |
In real production, the best way to solve transfer defects is to work through the process logically. Random adjustments often waste time and material.
Operators should first observe the exact defect pattern, then adjust one major variable at a time, usually starting with temperature, followed by pressure and dwell time. If too many settings are changed together, it becomes difficult to identify the true cause of improvement or failure. Controlled testing with small batches is much more effective than large-scale guesswork.
If settings seem reasonable but the defect remains, the next step is to inspect the foil type, substrate condition, die quality, and make-ready setup. In many cases, the machine is not the real problem. Instead, the issue comes from using the wrong foil for the stock, running material with unstable surface conditions, or overlooking a mechanical preparation problem. A systematic approach helps the Hot Foil Stamping Die Cutting Machine perform as it should.
Yes. Foil that has aged poorly or been stored in unsuitable temperature or humidity conditions may lose consistent release and bonding performance, which can lead to patchy transfer, weak adhesion, or unstable stamping quality even if machine settings appear correct.
Large solid areas require more even heat, pressure, and foil release across the full image area, so they are more sensitive to imbalance in setup. Small logos may still stamp acceptably while large metallic blocks reveal patchiness, trapped air effects, or weak bonding much more clearly.
Yes. Testing on the exact substrate planned for production is one of the most reliable ways to prevent transfer defects because even similar-looking materials can behave differently under heat and pressure. Small differences in coating, texture, or moisture can change foil performance.
Yes. Higher speed can shorten effective dwell time and reduce the chance for full foil bonding, especially on difficult substrates or detailed designs. If speed increases, temperature, pressure, or dwell-related settings may need to be adjusted to maintain clean transfer.
In conclusion, when foil does not transfer cleanly, the problem is rarely random. It is usually caused by an imbalance among temperature, pressure, dwell time, foil compatibility, substrate condition, die precision, and make-ready quality. Clean stamping is the result of control rather than luck. A well-adjusted Hot Foil Stamping Die Cutting Machine can produce sharp, bright, and stable foil effects, but only when machine settings are properly matched with the production materials. For packaging manufacturers, the most effective approach is to identify the defect pattern carefully, test each variable methodically, and correct the process step by step. This not only reduces waste and improves repeatability, but also helps deliver the premium finish that customers expect. With the reliable equipment solutions provided by DAI’S Printing Machinery Co., Ltd., manufacturers can better optimize foil transfer quality and achieve more stable, high-value packaging production.
