A laminating machine is a versatile device designed to apply a protective layer, often a plastic or adhesive film, onto various materials. This process not only enhances the durability of the material but also improves its visual appeal and resistance to environmental damage such as water, dust, and tearing. Laminating machines are widely used in offices, print shops, packaging facilities, and industrial production lines for both small-scale and large-scale applications.
But can fabric, with its unique texture and flexibility, be laminated effectively in a traditional or industrial laminating machine? This question is particularly relevant for designers, craft enthusiasts, and manufacturers who want to enhance the durability and aesthetic quality of textiles. Understanding the feasibility of laminating fabric, the right techniques, and the proper equipment is crucial for achieving professional results without damaging the material.
The purpose of this article is to provide a comprehensive guide on how to laminate fabric using a laminating machine, highlighting the different machine types, processes, precautions, and applications. In particular, we will explore the advantages of using industrial high-speed laminators like the DS-1450S from DAI’S Printing Machinery Co., Ltd., which are engineered to deliver efficiency and precision in high-volume production environments.
Before attempting to laminate fabric, it is essential to understand that fabrics vary greatly in texture, thickness, heat sensitivity, and composition. These characteristics determine whether hot or cold lamination is appropriate and which adhesive films will provide the best results.
Cotton: Soft and breathable, cotton can generally be laminated with both hot and cold methods, provided the temperature is carefully controlled to avoid scorching or shrinking.
Linen: A sturdy fabric prone to wrinkling, linen often benefits from cold lamination, as heat can distort its natural texture.
Polyester: Heat-resistant and durable, polyester is well-suited for hot lamination, yielding a strong, glossy finish.
Blended Fabrics: Combinations of cotton, polyester, or synthetic fibers require testing to determine the optimal lamination method and adhesive selection.
Fabrics can be broadly categorized based on their tolerance to heat:
Heat-Sensitive Fabrics: Delicate cottons, silk, and certain synthetics may shrink, warp, or discolor under high temperatures. Cold lamination is safer for these materials.
Heat-Tolerant Fabrics: Polyester, canvas, and heavy cotton blends can withstand hot lamination, which generally produces a stronger bond and a more polished appearance.
Choosing the right adhesive film is just as important as selecting the appropriate fabric. Heat-activated films used in hot lamination create a strong, durable bond, while pressure-sensitive films for cold lamination maintain flexibility and prevent heat damage. Film thickness, adhesive strength, and transparency also affect the final look and feel of the laminated fabric.
Pro Tip: Always test a small swatch before running full production. This ensures that the fabric and adhesive combination works well and prevents costly errors.
Different laminating machines cater to various materials and production needs. Selecting the correct type of laminator is essential for success.
Hot laminating machines use heated rollers to melt adhesive films, which are then pressed onto the fabric. The heat ensures a strong, long-lasting bond and a smooth, glossy finish.
Temperature Control: Critical for preventing fabric distortion or burning. High-end machines allow precise adjustments to match fabric thickness and type.
Suitable Fabrics: Polyester, canvas, heavy cotton, and other heat-tolerant textiles.
Advanced Features: Modern hot laminators often feature digital temperature control, multi-point sensors, and adjustable pressure rollers to ensure uniform adhesion and minimal defects.
Hot laminating is especially valuable for industrial or commercial applications where durability and appearance are paramount.
Cold laminating machines rely solely on pressure to bond self-adhesive films to the fabric surface, eliminating the need for heat. This method is particularly useful for heat-sensitive fabrics or delicate designs.
Advantages: Safer for delicate fabrics, easier to operate, and suitable for small-scale or craft projects.
Precautions: Protective sheets or carrier papers are recommended to prevent the adhesive from sticking to rollers.
Applications: Art projects, signage, craft materials, and specialized packaging.
Although slower than hot lamination, cold lamination reduces the risk of damaging the fabric while maintaining flexibility and color vibrancy.

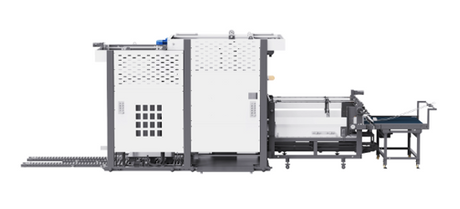

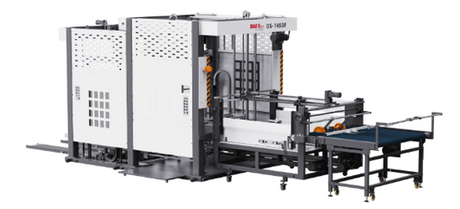

For high-volume or heavy-duty applications, industrial laminators like the DS-1450S are ideal. These machines are designed to handle large rolls of fabric, thicker textiles, and continuous high-speed production.
Key Features:
Automated feeding systems for precise alignment
Adjustable pressure rollers
Digital sensors for material positioning
Hot and cold lamination capability
Applications: Advertising fabrics, industrial textiles, packaging materials, exhibition materials, and crafts.
The DS-1450S provides efficiency, precision, and consistent quality, making it suitable for businesses requiring professional lamination results at scale.
Clean the fabric to remove dust, dirt, or debris that may interfere with adhesion.
Iron or flatten the fabric to eliminate wrinkles, ensuring smooth lamination.
Trim the fabric to appropriate dimensions for the laminating machine.
Select heat-activated film for hot lamination or pressure-sensitive film for cold lamination.
Consider thickness, transparency, and desired finish for the intended application.
Align the fabric carefully to prevent wrinkles or misalignment.
Use protective carrier sheets or release papers to prevent the adhesive from sticking to rollers or damaging the fabric.
Hot Lamination: Set the correct temperature for the fabric type. Pass the fabric slowly through the heated rollers to ensure even adhesive activation.
Cold Lamination: Apply consistent pressure with the rollers to bond the adhesive film without heat.
Control speed, pressure, and temperature to guarantee uniform adhesion and prevent defects.
Allow the laminated fabric to cool and stabilize before handling.
Trim excess adhesive film to create a clean edge.
Inspect for bubbles, wrinkles, or uneven adhesion and adjust future runs accordingly.
Laminated fabrics have wide-ranging applications across multiple industries:
Tablecloths, curtains, and protective covers
Enhances water resistance, durability, and ease of cleaning
Fabric appliqués, display boards, and fabric labels
Preserves color, texture, and design integrity while adding rigidity
Advertising fabrics, exhibition displays, and industrial packaging
Improves durability, tear resistance, and presentation quality
Using industrial machines like the DS-1450S ensures high-quality lamination at a large scale, saving time while maintaining consistency and precision.
Always test a small swatch of fabric before large-scale lamination.
Carefully control temperature and pressure to avoid shrinking, warping, or scorching the fabric.
Match adhesive film to fabric thickness and type.
Maintain laminating machines regularly to ensure smooth material feeding and consistent results.
Pay extra attention when laminating fabric rolls or large sheets to prevent misalignment or material waste.
Laminating fabric with a laminating machine is not only feasible but also advantageous for enhancing durability, water resistance, and professional presentation. By selecting the appropriate machine type—whether hot, cold, or industrial high-speed laminators like the DS-1450S—and matching the adhesive film to the fabric, users can achieve consistent, high-quality results.
Proper preparation, precise feeding, careful heating or pressing, and cooling are essential steps to ensure optimal lamination. Industrial machines like the DS-1450S from DAI’S Printing Machinery Co., Ltd. provide advanced features such as automated feeding, digital sensors, adjustable pressure, and high-speed operation, making them ideal for high-volume and professional fabric lamination.
For manufacturers, designers, and craft enthusiasts looking for reliable and efficient lamination solutions, DAI’S Printing Machinery offers expertise and precision equipment to optimize production workflows, enhance material durability, and deliver exceptional results. Exploring their solutions can help businesses achieve both productivity and professional-grade finishes, whether for fabrics, paper, or other materials.
Q1: Can all fabrics be laminated using a laminating machine?
A: Not all fabrics are suitable for lamination. Heat-sensitive fabrics like silk or delicate cotton are better with cold lamination, while heat-tolerant fabrics such as polyester, canvas, and heavy cotton blends can be laminated with hot methods. Testing a small swatch is recommended.
Q2: What is the difference between hot and cold lamination for fabrics?
A: Hot lamination uses heat-activated adhesive films to create a strong, glossy bond, ideal for sturdy fabrics. Cold lamination relies on pressure alone, making it safer for delicate or heat-sensitive textiles, preserving color and texture.
Q3: Can industrial laminators handle large rolls of fabric?
A: Yes. Specialized high-speed laminators like the DS-1450S are designed to process large rolls or thick fabrics efficiently, with features like automated feeding, digital alignment, and adjustable pressure for consistent results.
Q4: How do I prevent wrinkles or bubbles during fabric lamination?
A: Proper fabric preparation, precise alignment, using carrier sheets, and controlling temperature and pressure are essential. Industrial machines with automated feeding and digital sensors further minimize errors for high-volume runs.
Q5: What are the main benefits of laminating fabric?
A: Laminated fabrics become water-resistant, more durable, easier to clean, and visually enhanced. They are ideal for home décor, crafts, packaging, advertising materials, and industrial applications, providing both protection and professional presentation.
